Insulated Aluminum 5000 Series

The 5000 Series is available with Decorative Glass options. Three decorative designs, and six glass combinations. Insulated tempered glass with design on third surface. Opacity levels ranging from clear to moderately opaque. Available for Carriage House, Ranch and Standard Series windows.

The 5000 Series provides maximum energy efficiency by using CFC-free polyurethane foam insulation. This means a calculated R-Value of 17.66 for 5200 models and 16.8 for 5700 models.

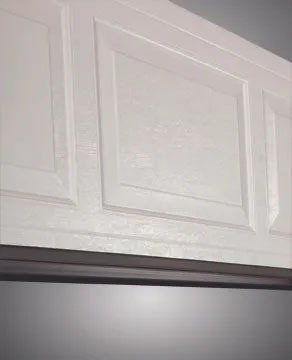

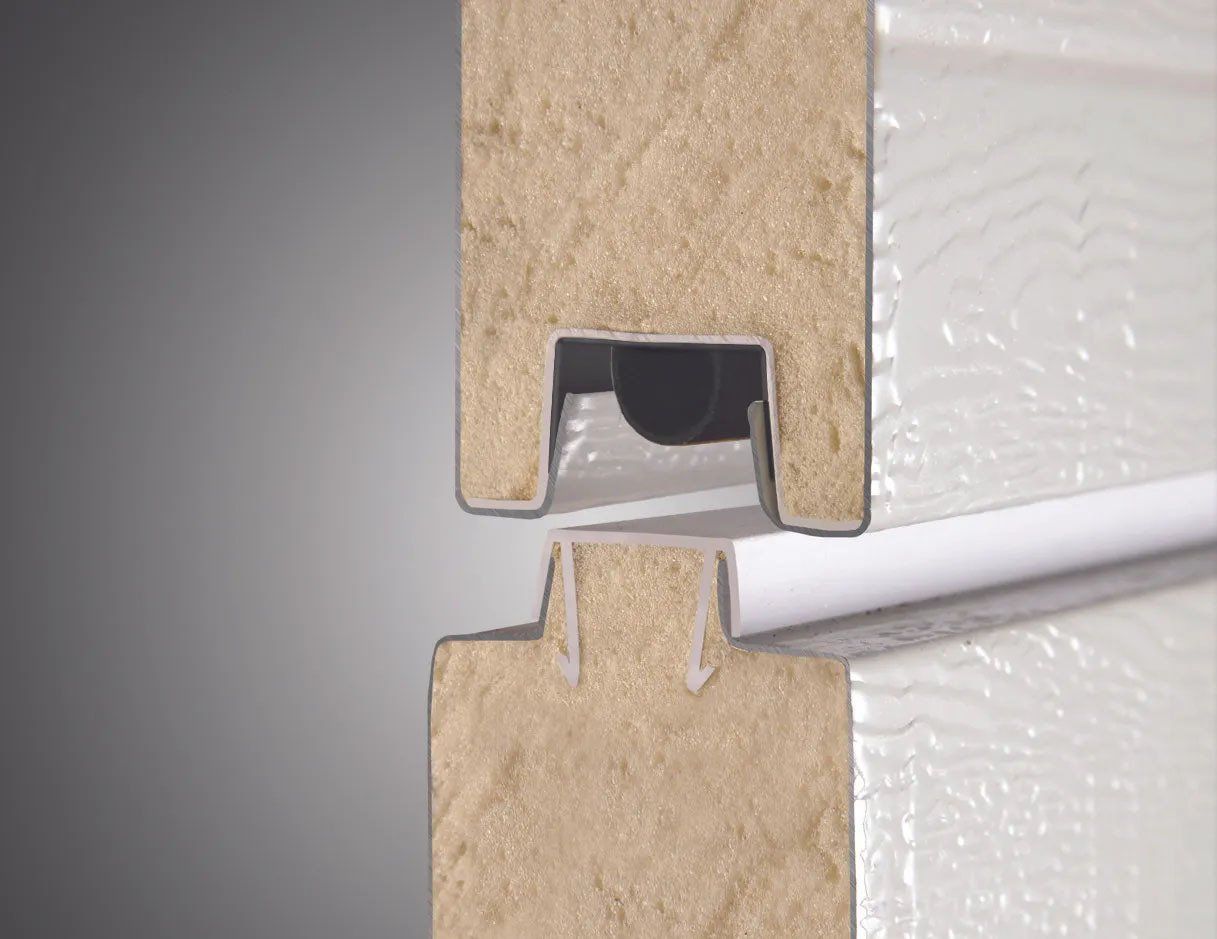

A full thermal break is used in the tongue-and-groove construction of all 5000 series doors. These rigid vinyl top and bottom caps seal the joints and minimizes metal-to-metal contact, which limits the transfer of temperature. 5200 model doors include air infiltration seals, which exceed the ASHRAE 90.1 standard when installed with standard bottom seal and commonly available vinyl door stop.

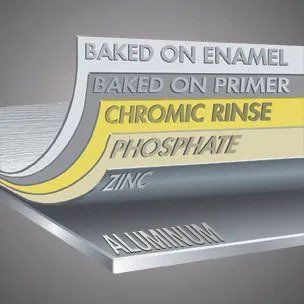

The 5000 Series doors have an embossed stucco exterior and feature a tough, durable and weather-resistant Trinar® paint finish. Exposed for decades at weathering facilities in South Florida and other locations around the world, testing has proven Trinar® paints are more than capable of withstanding the degrading effects of weather extremes from the equator to the arctic.
